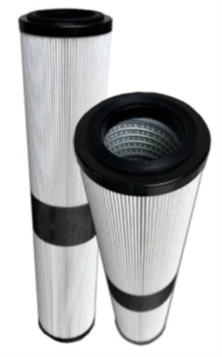

EPS-051573-P

Part Name: Filter element size 1573, Particle removal, 5µ

Part Number: EPS-051573-P

Specification

Size: 1573
Micron Rating: 5 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Remove solid particle
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

EPS-101573-P

Part Name: Filter element size 1573, Particle removal, 10µ

Part Number: EPS-101573-P

Specification

Size: 1573
Micron Rating: 10 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Remove solid particle
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

EPS-251573-P

Part Name: Filter element size 1573, Particle removal, 25µ

Part Number: EPS-251573-P

Specification

Size: 1573
Micron Rating: 25 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Remove solid particle
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

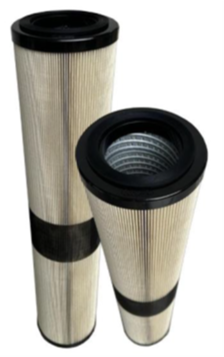

EPS-051573-A

Filter element size 1573, Water absorber 5 micron

Part Name: Filter element size 1573, Water absorber, 5µ

Part Number: EPS-051573-A

Specification

Size: 1573
Micron Rating: 5 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Remove solid particle and water absorbing
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

EPS-101573-A

Filter element size 1573, Water absorber 10 micron

Part Name: Filter element size 1573, Water absorber, 10µ

Part Number: EPS-101573-A

Specification

Size: 1573
Micron Rating: 10 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Remove solid particle and water absorbing
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

EPS-031573-S

Filter element size 1573, Water separator 3 micron

Part Name: Filter element size 1573, Water separator, 3µ

Part Number: EPS-031573-S

Specification

Size: 1573
Micron Rating: 3 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Block the coalesced water droplets
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

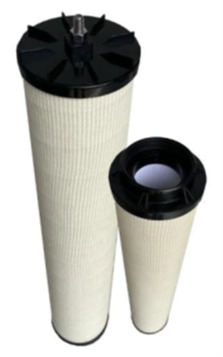

EPS-101583-C

Filter element size 1573, Coalescer 10 micron

Part Name: Filter element size 1573, Coalescer, 10µ

Part Number: EPS-101583-C

Specification

Size: 1573
Micron Rating: 10 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Coalesces emulsified water
Application: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

EPS-1020115-C

Part Name: Filter element size 20115, Coalescer, 10µ

Part Number: EPS-1020115-C

Specification

Size: 20115
Micron Rating: 25 micron
Flowrate: 257 Lpm (Max.), 123.5 Lpm (Recommended)
Media: Coalesces emulsified water
Application: Diesel, Biodiesel
End cap configuration: Thread base
End cap material: Plastic
End cap seal: Flat gasket, NBR
Max. Temperature: 100°C
Change out: 25 psid (Combine with EPS-**10115-S)
Collapse: 75 psid (Combine with EPS-**10115-S)
Flow Direction: Outside to Inside

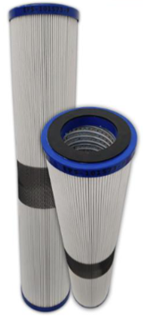

EPS-1020115-QL

Part Name: Filter element size 20115, Quad layer, 10µ

Part Number: EPS-1020115-QL

Specification

Size: 20115
Dimension: 195mm(OD) x 140mm(ID) x 1150mm(H)
Micron Rating: 10 micron
Flowrate: 514 Lpm (Max.), 257 Lpm (Recommended)
Media: Pleated cellulose and microglass
Application: Particle remover and water absorber
Fluid: Diesel, Biodiesel
End cap configuration: Double open end
End cap material: Plastic
Structure material: Mild steel
End cap seal: Flat gasket, NBR
Max. Temperature: 110°C
Change out: 25 psid
Collapse: 75 psid
Flow Direction: Outside to Inside

Micron Size	4	6	14
Beta ratio (βx)	12.5	83.3	1,000
Efficiency (%)	92	98.9	99.9
