Pump
Efficiently transfer diesel fuel with our reliable Electrical Diesel Pump, designed for seamless performance in diverse industries. Elevate productivity and experience unparalleled reliability in your fluid transfer operations.

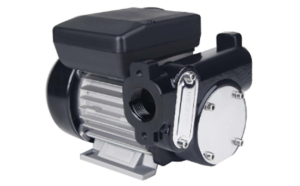

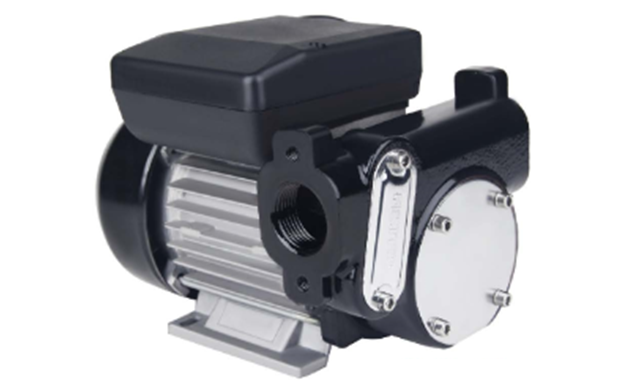

DTP-60AC
Part Name: Electric Diesel Fuel Pump 60Lpm
Part Number: DTP-60AC
Specification
- Max. Flow: 60 Lpm
- Max. Pressure: 30 m.h
- Power: 370 Watt
- Voltage: 220 VAC/1ph/50Hz
- Protection: IP55
- Max. Temperature: 35°C
- Fluid Viscosity: 2-20cSt (Diesel, Kerosene, Light Oil)
- Connection: 1″
- Motor Speed: 2800 rpm
- Self Priming: Yes

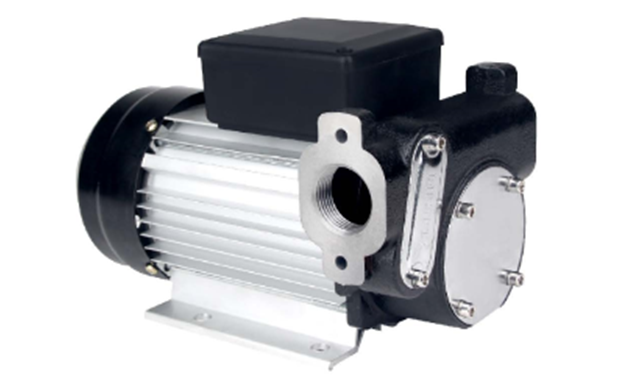

DTP-80AC
Part Name: Electric Diesel Fuel Pump 80Lpm
Part Number: DTP-80AC
Specification
- Max. Flow: 80 Lpm
- Max. Pressure: 30 m.h
- Power: 500 Watt
- Voltage: 220 VAC/1ph/50Hz
- Protection: IP55
- Max. Temperature: 35°C
- Fluid Viscosity: 2-20cSt (Diesel, Kerosene, Light Oil)
- Connection: 1″
- Motor Speed: 2800 rpm
- Self Priming: Yes

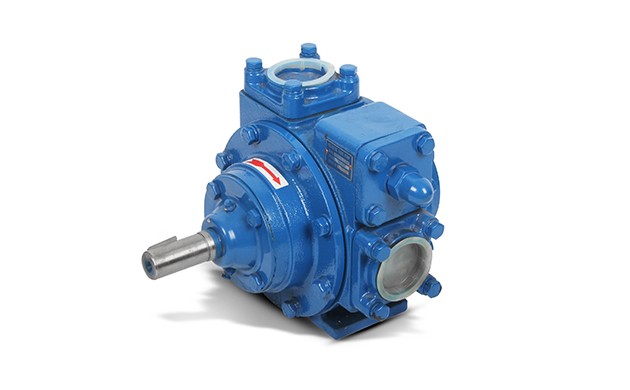

YB-50
Part Name: Rotary vane bare pump 2″, up to 300Lpm
Part Number: YB-50
Specification
- Flow Rate: 150 – 300 Lpm
- Max. Pressure: 5 Bar
- Max. speed: 640 rpm
- Max. input power: 2.2 kW / 3 HP
- Max. Temperature: 148°C
- Connection: 2″ BSP, 50mm with square flange
- Self Priming: Yes
YB-65
Part Name: Rotary vane bare pump 2.1/2″, up to 500Lpm
Part Number: YB-65
Specification
- Flow Rate: 300 – 500 Lpm
- Max. Pressure: 5 Bar
- Max. speed: 640 rpm
- Max. input power: 4 kW / 5 HP
- Max. Temperature: 148°C
- Connection: 2″ BSP, 50mm with square flange
- Self Priming: Yes
YB-80
Part Name: Rotary vane bare pump 3″, up to 1000Lpm
Part Number: YB-80
Specification
- Flow Rate: 600 – 1000 Lpm
- Max. Pressure: 5 Bar
- Max. speed: 640 rpm
- Max. input power: 7.5 kW / 10 HP
- Max. Temperature: 148°C
- Connection: 3″ BSP, 50mm with square flange
- Self Priming: Yes

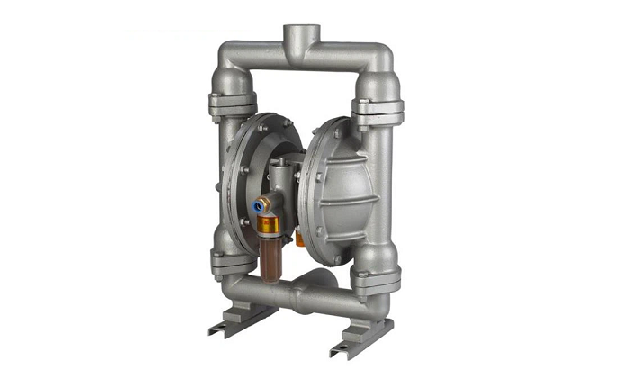

QBK-25
Part Name: Air Operated Diaphragm Pump 1″
Part Number: QBK-25
Specification
- Max. Flow: 100 Lpm
- Max. Pressure: 6.9 m.h
- Ratio: 1:1
- Body: Aluminium
- Diaphragm: Teflon
- Connection: 1″
- Max Grain: Ø 2.5mm
QBK-40
Part Name: Air Operated Diaphragm Pump 1.5″
Part Number: QBK-40
Specification
- Max. Flow: 140 Lpm
- Max. Pressure: 6.9 bar
- Ratio: 1:1
- Body: Aluminium
- Diaphragm: Teflon
- Connection: 1.5″
- Max Grain: Ø 4.5mm
QBK-50-AN
Part Name: AODDP 2″, Body:Aluminum, Diaphragm:NBR
Part Number: QBK50-AN
Specification
- Max. Flow: 240 Lpm
- Max. Pressure: 6.9 bar
- Ratio: 1:1
- Body: Aluminium
- Diaphragm: Nitrile
- Connection: 1.5″
- Max Grain: Ø 8mm

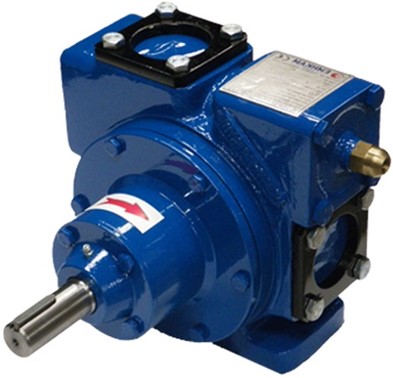

GMD2
Part Name: Sliding vane pump 2″, 120-500 Lpm
Part Number: GMD2
Specification
- Max. Flow: 200 – 500 Lpm
- Max. Pressure: 12 bar
- Pump Speed: 200 – 800 rpm
- Max. Temperature: 200°C
- Self Priming: Yes
- By-pass valve: Yes (Adjustable)
- Rotation: Clockwise (CW)
- Inlet Port: 2″ square weld flange, Right side
- Outlet port: 2″ square weld flange, Left side / Top side
GMD2.5
Part Name: Sliding vane pump 2.1/2″, 200-775 Lpm
Part Number: GMD2.5
Specification
- Max. Flow: 200 – 775 Lpm
- Max. Pressure: 12 bar
- Pump Speed: 200 – 800 rpm
- Max. Temperature: 200°C
- Self Priming: Yes
- By-pass valve: Yes (Adjustable)
- Rotation: Clockwise (CW)
- Inlet Port: 2.5″ square weld flange, Right side
- Outlet port: 2.5″ square weld flange, Left side / Top side
GMD3
Part Name: Sliding vane pump 3″, 196-1240 Lpm
Part Number: GMD3
Specification
- Max. Flow: 196 – 1240 Lpm
- Max. Pressure: 12 bar
- Pump Speed: 150 – 800 rpm
- Max. Temperature: 200°C
- Self Priming: Yes
- By-pass valve: Yes (Adjustable)
- Rotation: Clockwise (CW)
- Inlet Port: 3″ square weld flange, Right side
- Outlet port: 3″ square weld flange, Left side / Top side
Air Operated Oil Pump

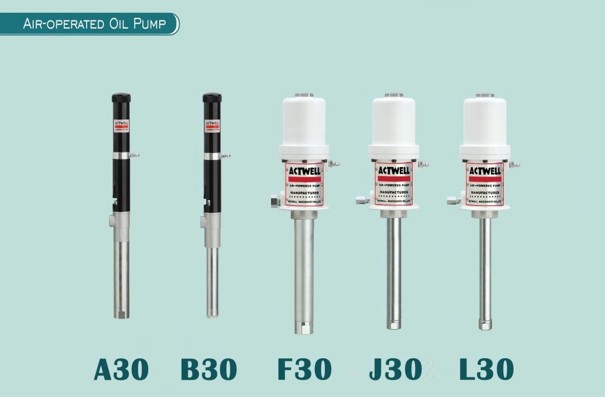

Air Operated Oil Stub Pump
Part Name: Air operated oil pump
Part Number: A30, B30, F30, J30, L30
Specification
| A30 | B30 | F30 | J30 | L30 | |
|---|---|---|---|---|---|
| Ratio | 1:1 | 2:1 | 5:1 | 9:1 | 15:1 |
| Free Delivery (lpm)* | 17 | 12 | 41 | 19 | 11 |
| Diameter | 1-13/32″ | 3″ | |||
| Stroke | 4″ | 2-3/4″ | |||
| Suction Port (BSPT) | 1-1/2″ | 3/4″ | 1-1/2″ | 3/4″ | 3/4″ |
| Discharge Port (BSPT) | 3/4″ | 1/2″ | 3/4″ | 3/8″ | |
| Air Inlet Port (BSPT) | 1/4″ | 3/8″ | |||
| Oil Range | SAE 0–120 | SAE 0–140 | SAE 0–200 | ||
| Shank Length (mm) | 299 | 293 | 344 | 280 | |
| Weight (kg) | 4 | 4 | 9.1 | 7.8 | 7.5 |
* Free delivery tested at 6 kg/cm² air pressure, SAE30, 25°C
Air Operated Oil Drum Pump
Part Name: Air Operated Oil Drum Pump, 200Ltr
Part Number: F80, J80, L80
Specification
| F80 | J80 | L80 | |
|---|---|---|---|
| Ratio | 5:1 | 9:1 | 15:1 |
| Free Delivery (lpm)* | 41 | 19 | 11 |
| Diameter | 3″ | ||
| Stroke | 2-3/4″ | ||
| Suction Port (BSPT) | 1-1/2″ | 3/4″ | 1-1/2″ |
| Discharge Port (BSPT) | 3/4″ | 3/8″ | 3/8″ |
| Air Inlet Port (BSPT) | 3/8″ | ||
| Oil Range | SAE 0–120 | SAE 0–140 | SAE 0–200 |
| Shank Length (mm) | 906 | 905 | |
| Weight (kg) | 12.4 | 10.8 | 10.5 |
* Free delivery tested at 6 kg/cm² air pressure, SAE30, 25°C
