Flowmeter

Discover the ultimate solution – our cutting-edge Flowmeter. Ideal for HVAC, chemical, and water management industries. Unlock accurate data for optimal process control and efficiency. Elevate your flow measurement capabilities today.

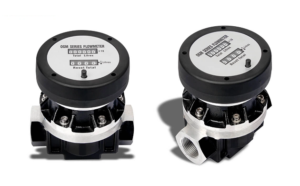

OGM-25A

Oval Gear Flowmeter

Part Name: Oval Gear Flowmeter 1″ type A

Part Number: OGM-25A

Specification

  • Flowrate: 20 – 120 Lpm
  • Max. Pressure: 24 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 1″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

OGM-40A

Oval Gear Flowmeter 1.5 inch

Part Name: Oval Gear Flowmeter 1.5″ type-A

Part Number: OGM-40A

Specification

  • Flowrate: 25 – 250 Lpm
  • Max. Pressure: 18 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 1.5″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

OGM-50A

Oval Gear Flowmeter 2 inch

Part Name: Oval Gear Flowmeter 2″ type-A

Part Number: OGM-50A

Specification

  • Flowrate: 30 – 300 Lpm
  • Max. Pressure: 18 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 2″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

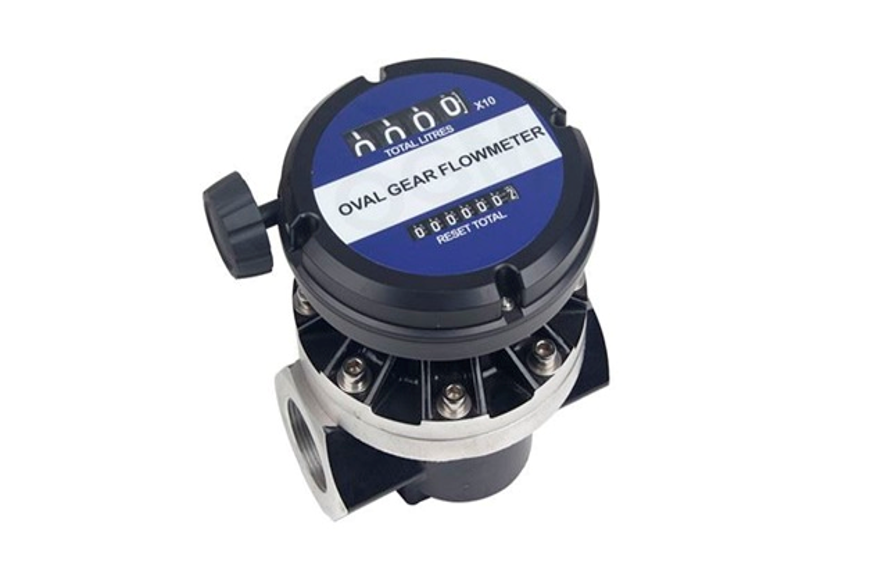

OGM-25N

Oval Gear Flowmeter 1 inch N Type

Part Name: Oval Gear Flowmeter 1″ type N

Part Number: OGM-25N

Specification

  • Flowrate: 20 – 120 Lpm
  • Max. Pressure: 24 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 1″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

OGM-40N

Oval Gear Flowmeter 1.5 inch N Type

Part Name: Oval Gear Flowmeter 1.5″ type-N

Part Number: OGM-40N

Specification

  • Flowrate: 25 – 250 Lpm
  • Max. Pressure: 18 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 1.5″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

OGM-50N

Oval Gear Flowmeter 2 inch N Type

Part Name: Oval Gear Flowmeter 2″ type-N

Part Number: OGM-50N

Specification

  • Flowrate: 30 – 300 Lpm
  • Max. Pressure: 18 Bar
  • Accuracy: ± 0.5%
  • Repeatability: ≤ 0.03%
  • Max. Viscosity: 1000 cPs
  • Connection: 2″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)

M-40C

Lobe Flowmeter 1.5 inch

Part Name: Lobe Flowmeter 1.5″

Part Number: M-40C

Specification

  • Flowrate: 25 – 250 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: 70°C
  • Displacement: 0.309 Ltr/rev
  • Accuracy: ± 0.2%
  • Repeatability: ≤ 0.05%
  • Connection: 1.5″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)
    Seal: FKM (Viton)
  • Configuration: Meter, Register, Strainer, Air Eliminator

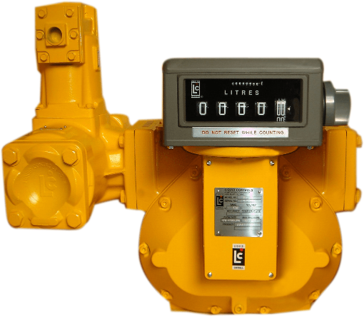

M-50C

Lobe Flowmeter 2 inch

Part Name: Lobe Flowmeter 2″

Part Number: M-50C

Specification

  • Flowrate: 55 – 550 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: 70°C
  • Displacement: 0.681 Ltr/rev
  • Accuracy: ± 0.2%
  • Repeatability: ≤ 0.05%
  • Connection: 2″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)
  • Seal: FKM (Viton)
  • Configuration: Meter, Register, Strainer, Air Eliminator

Download

Download Data Sheet

M-80C

Lobe Flowmeter 3 inch

Part Name: Lobe Flowmeter 3″

Part Number: M-80C

Specification

  • Flowrate: 115 – 1150 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: 70°C
  • Displacement: 1.839 Ltr/rev
  • Accuracy: ± 0.2%
  • Repeatability: ≤ 0.05%
  • Connection: 3″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)
  • Seal: FKM (Viton)
  • Configuration: Meter, Register, Strainer, Air Eliminator

Download

Download Data Sheet

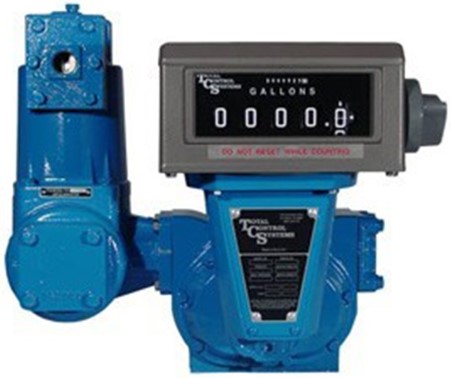

M-100C

Lobe Flowmeter 4 inch

Part Name: Lobe Flowmeter 4″

Part Number: M-100C

Specification

  • Flowrate: 170 – 1700 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: 70°C
  • Displacement: 5.102 Ltr/rev
  • Accuracy: ± 0.2%
  • Repeatability: ≤ 0.05%
  • Connection: 4″
  • Body: Aluminium
  • Rotor: PPS (Polyphenylene Sulfide)
  • Seal: FKM (Viton)
  • Configuration: Meter, Register, Strainer, Air Eliminator

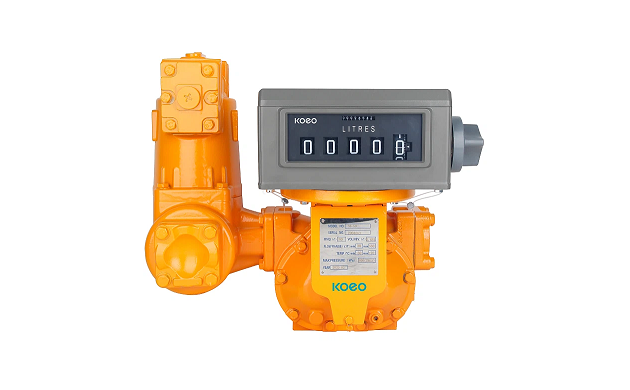

FCM-50L

Lobe Flowmeter 55-550Lpm

Part Name: Lobe Flowmeter 55–550Lpm

Part Number: FCM-50L

Specification

  • Flowrate: 55 – 550 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: –40°C to 70°C
  • Displacement: –
  • Accuracy: ± 0.1%
  • Repeatability: –
  • Connection: 2″
  • Body: Aluminium
  • Seal: –
  • Configuration: Meter, Register, Strainer, Air Eliminator

FCM-80

Lobe Flowmeter 110-1100Lpm

Part Name: Lobe Flowmeter 110–1100Lpm

Part Number: FCM-80

Specification

  • Flowrate: 110 – 1100 Lpm
  • Max. Pressure: 10 Bar
  • Max. Temperature: –40°C to 70°C
  • Displacement: –
  • Accuracy: ± 0.1%
  • Repeatability: –
  • Connection: 3″
  • Body: Aluminium
  • Seal: –
  • Configuration: Meter, Register, Strainer, Air Eliminator

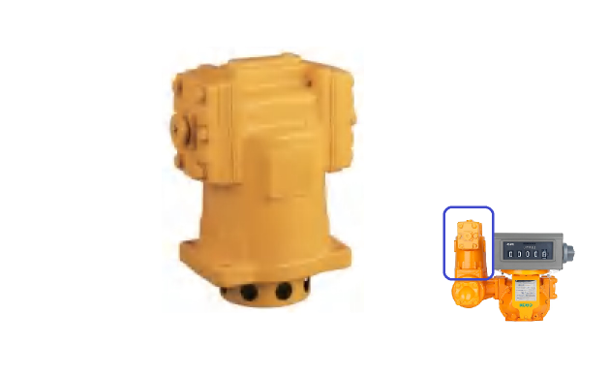

Air Eliminator

Air Eliminator

Part Name: Air Eliminator

Part Number: AE

Specification

  • Flowrate: –
  • Max. Pressure: 10 Bar
  • Max. Temperature: 70°C
  • Body: Aluminium
  • Use for: M-40 / M-50 / M80 / M100 / M150 / Air eliminator tank
